Classification of vibroflot

Top feed Vibroflot introduction

Used for top feed vibroflotation construction

Outside diameter of vibroflot is 377mm/426 mm

It is often used in vibro-compaction and vibro-replacement construction with the diameter range of 700-1200mm


Component of top feed vibroflot



1. Hanging Head

A key part to guarantee the safety construction of the whole vibroflot. It should be installed at the top of the vibroflot and can be connected with the crane hook


Characteristic of BVEM Hanging Head

Multiple function of lifting connection and cables/water pipes outrigger beam

Applicable for different types of vibroflot

Unique curved design reduces wear on cables and water pipes

Through it, extension tube can be directly filledwith high pressure water


2. Extension Tube

Used for protecting the cable and water pipe. It also can be used directly as a water pipe when the demand of water supplying is large


Characteristic of BVEM Extension Tube

A variety of wall thickness and diameter, can meet different requirements

Diversified length specifications can be customized to flexibly handle the construction with different pile lengths

Unique embedded self-locking bolt fixed to facilitate the easy assembly/dis-assembly and reliable connection


3. Vibration Damper

Reduce the impact of vibration


Characteristic of BVEM Vibration Damper

High strength integral cast steel forging

High quality rubber filling facilitate to good shock absorption and long serve life

Unique structural design ensures reliable connection even when rubber is damage


4. Motor

Used to drive eccentric block rotation of vibroflot


Characteristic of BVEM Motor

Adopt the special motor for vibroflot with high performance and long life obtained national patent


5. Vibration Body


Transmit horizontal vibration force,impact soil, and form into compacted pile body through feeding or compaction effect


Characteristic of BVEM Vibration Body

The main body of vibroflot is forged by cast steel with high strength and good toughness

Adopt the wear-resisting connection flange of integral forging after heat treatment

The high-strength bolt with embedded self-locking is adopted


Top feed vibroflot control system

BVEM Electrical Control Cabinet

Use high quality electrical components assembly, IP65 protective grade

Open-type interface for external power and control switch, can realize the start and stop control of a variety of equipment(vibrator, pump)and connection( data recorder)

Overload protection function design to ensure the safe use of equipment

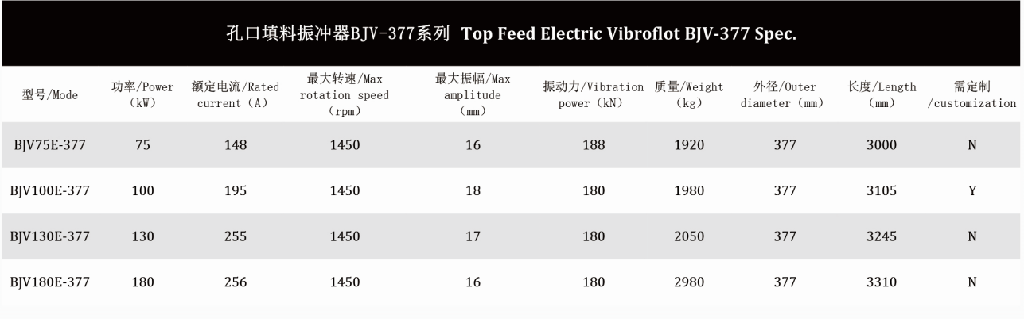

BVEM BJV-377 Series top feed vibroflot

Specification parameters

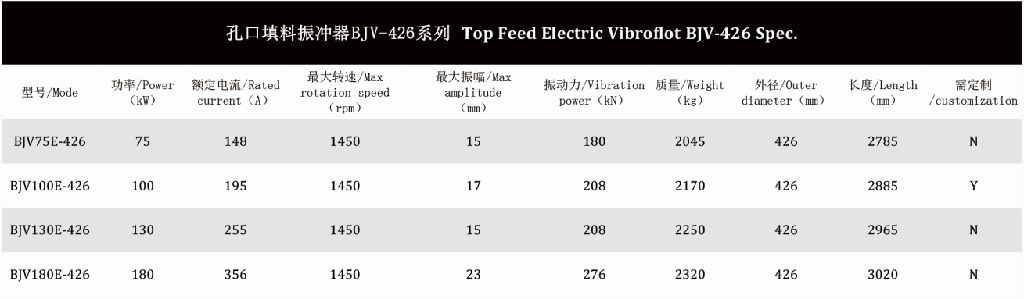

BVEM BJV-426 Series top feed vibroflot

Specification parameters


BVEM BJV260E-450 high power top feed vibroflot

Specification parameters


BVEM other series top feed vibroflot

Specification parameters
