BVEM BJVH-350-105 Hydraulic Vibroflot

With over 50 years of dedication to the vibroflotation industry, BVEM has focused on the R&D and investment in vibroflotation products. It takes creating high-efficiency, stable and high-quality equipment as its core goal, providing solid and reliable guarantees for customers' vibroflotation projects. The BJVH-350-105 hydraulic vibroflot under its brand is a concentrated embodiment of its technical accumulation and innovative strength.

I. Working Principle of Hydraulic Vibroflot
This hydraulic vibroflot efficiently converts hydraulic energy into mechanical energy (rotational motion) through a hydraulic motor, driving the eccentric block to generate a strong horizontal excitation force. It has significant core advantages: large output torque, wide speed regulation range, and the ability to achieve stepless speed regulation. It can easily cope with large impact loads, providing both work efficiency and stable power support for vibroflotation construction.

II. Performance Parameters of BVEM BJVH-350-105 Hydraulic Vibroflot
performance parameters that accurately meet diverse construction needs:

>Eccentric moment of vibroflot:   29 Nm

>Rated speed of vibroflot:   600-2600 r/min

>Rated power of vibroflot:   105 kW

>Amplitude of vibroflot:   ±4.6 mm

>Hydraulic flow rate:   208 lpm

>Maximum working pressure:   350bar

>Maximum excitation force:   214kN

>Weight of vibroflot:   935kg

>Outer diameter of vibroflot:   350 mm

>Outer diameter with water channel:   568 mm

>Pile forming diameter:   500-800 mm

III. Features of BVEM BJVH-350-105 Hydraulic Vibroflot

600~3000rpm stepless speed regulation, which can flexibly match different construction rhythms and stratum requirements, and accurately control the operation intensity.

It has a wide range of applicable strata. With strong excitation force and optimized structural design, it has stronger penetration. It can work efficiently in both soft soil foundations and gravel-containing strata.

It can continuously output large excitation force and high power, ensuring stable and continuous construction process, and effectively improving pile forming efficiency and project quality.

It does not require a water~cooled motor, breaking through the dependence of traditional construction on water sources, realizing vibroflotation dry method environmental protection construction, and conforming to the concept of green engineering.

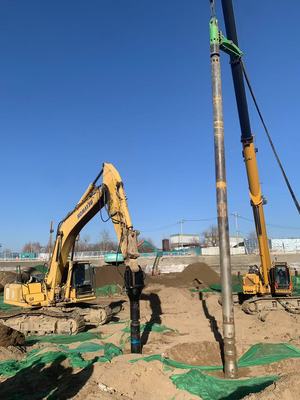

It has outstanding high adaptability and can be flexibly mounted on various construction site equipment such as special pump stations, rotary drilling rigs, excavators, and pile frames, adapting to the equipment configuration needs of different construction scenarios and reducing equipment investment costs.

BVEM has always been oriented to the diversified needs of customers, and is deeply engaged in the diversified R&D and innovation of vibroflot equipment: from electric vibroflots to hydraulic vibroflots, it has realized the iterative upgrading of driving methods; from top feed vibroflots to bottom feed vibroflots, it has accurately adapted to the core needs of different construction technologies; it has also broken through the limitations of equipment mounting scenarios, covering all kinds of construction scenarios.
